• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108999

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

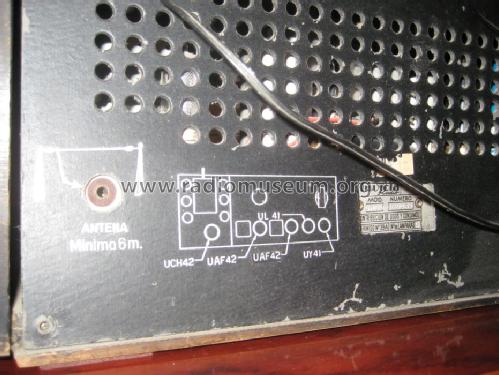

• UCH42 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 125; Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

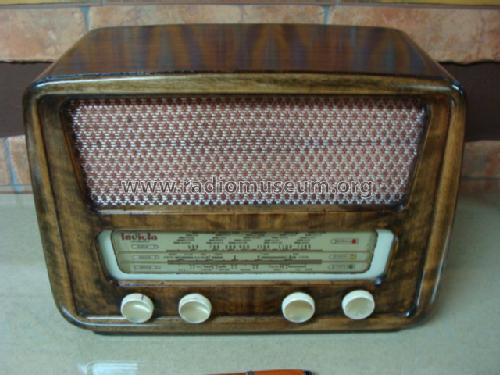

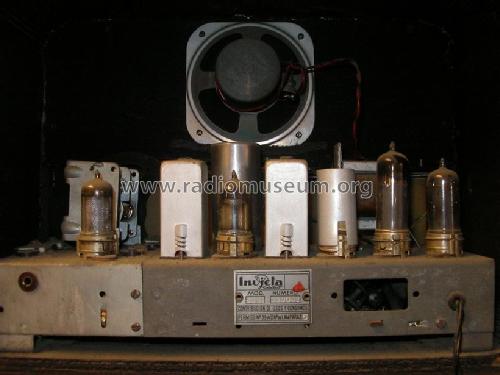

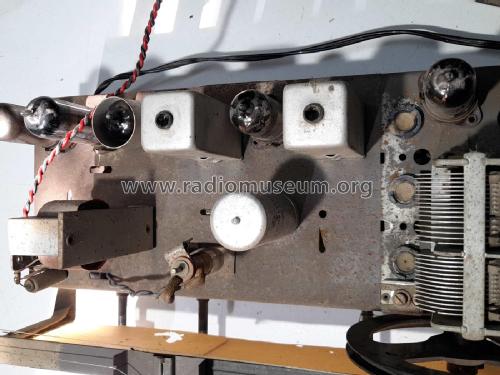

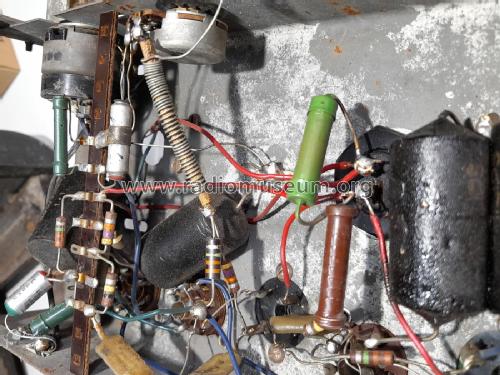

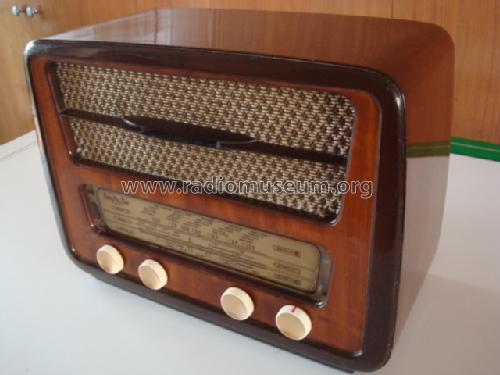

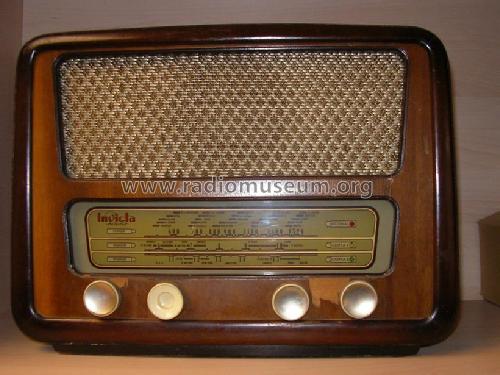

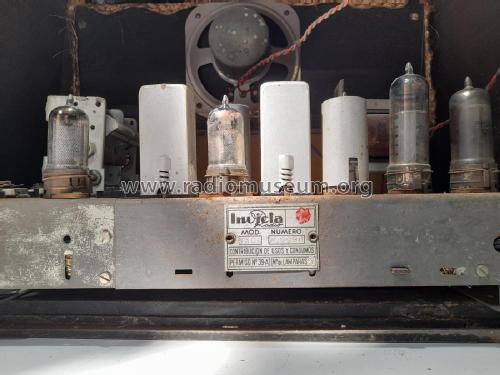

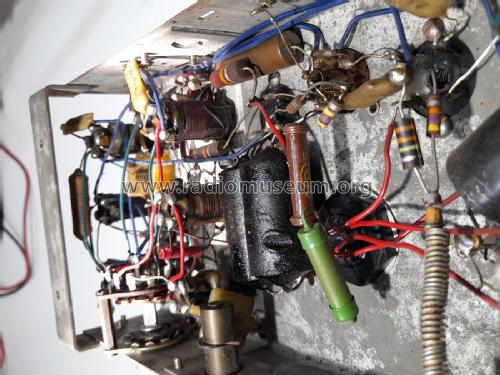

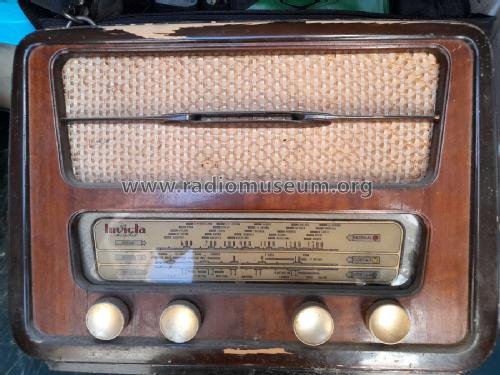

• Model: 5309 - Invicta Radio, Barcelona

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 280 x 190 mm / 15.4 x 11 x 7.5 inch

• Notes
• Gama de Ondas:
  O.Normal de: 530 a 1560 kHz.
  O.Corta I de: 5.8 a 10.5 MHz.
  O.Corta II de: 10.4 a 15.7 MHz.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
