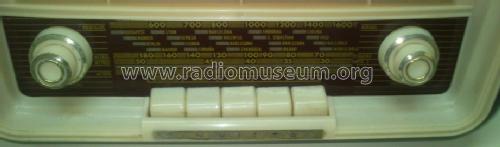

Milán 5436; Invicta Radio, (ID = 1678048) Radio Milán 5436; Invicta Radio, (ID = 1965725) Radio
Use red slider bar for more.
Milán 5436; Invicta Radio, (ID = 433626) Radio
Invicta Radio,: Milán 5436 [Radio] ID = 433626 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Milán 5436, Invicta Radio, Barcelona

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EF93 EBC91 EL84 EZ80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Milán 5436 - Invicta Radio, Barcelona
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 300 x 210 x 110 mm / 11.8 x 8.3 x 4.3 inch
Notes

OM, OP, OC-I y OC-II

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 2'995.00 ESP
Mentioned in Anuncio La Vanguardia Española diciembre 1958
