• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122319

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EF93 EBC91 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110/150 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

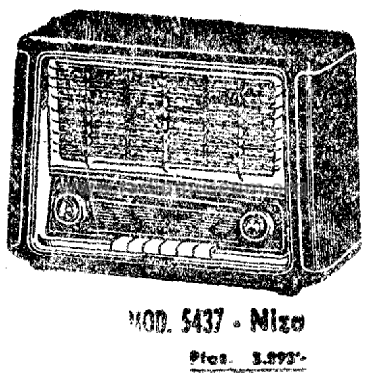

• Model: Niza 5437 - Invicta Radio, Barcelona

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 420 x 290 x 200 mm / 16.5 x 11.4 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 3,295.00 ESP

• Source of data
• - - Data from my own collection

• Mentioned in
• Anuncio La Vanguardia Española enero 1959

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
