Gander 6480-FM

Gander 6480-FM; Invicta Radio, (ID = 539896) Radio Gander 6480-FM; Invicta Radio, (ID = 539909) Radio
Gander 6480-FM; Invicta Radio, (ID = 539899) Radio Gander 6480-FM; Invicta Radio, (ID = 539904) Radio
Gander 6480-FM; Invicta Radio, (ID = 539908) Radio Gander 6480-FM; Invicta Radio, (ID = 539911) Radio
Gander 6480-FM; Invicta Radio, (ID = 539917) Radio Gander 6480-FM; Invicta Radio, (ID = 539920) Radio
Gander 6480-FM; Invicta Radio, (ID = 1175685) Radio Gander 6480-FM; Invicta Radio, (ID = 1175686) Radio
Use red slider bar for more.

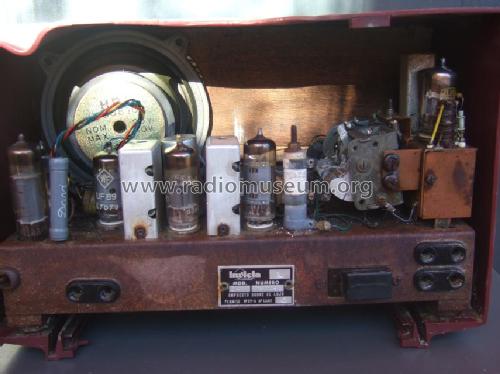

Gander 6480-FM; Invicta Radio, (ID = 539896) Radio
Invicta Radio,: Gander 6480-FM [Radio] ID = 539896 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gander 6480-FM, Invicta Radio, Barcelona

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Gander 6480-FM - Invicta Radio, Barcelona
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 220 x 150 mm / 13 x 8.7 x 5.9 inch
Notes

Serie Air-Port

Source of data - - Data from my own collection

Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.



All listed radios etc. from Invicta Radio, Barcelona
Here you find 234 models, 195 with images and 104 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
