B5214

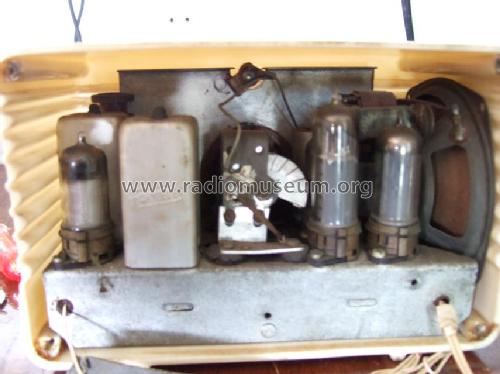

B5214; Invicta Radio, (ID = 440958) Radio B5214; Invicta Radio, (ID = 440960) Radio
B5214; Invicta Radio, (ID = 440959) Radio
Use red slider bar for more.
B5214; Invicta Radio, (ID = 440958) Radio
Invicta Radio,: B5214 [Radio] ID = 440958 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5214, Invicta Radio, Barcelona

Country:  Spain
Manufacturer / Brand:  Invicta Radio, Barcelona
alternative name

Establecimientos Lucarda || Radio Lucarda, S.L
Year: 1956 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: B5214 - Invicta Radio, Barcelona
Material Bakelite case
Dimensions (WHD) 210 x 170 x 120 mm / 8.3 x 6.7 x 4.7 inch

Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
