Peso 6472-FM
Invicta Radio, Barcelona
- Country
- Spain
- Manufacturer / Brand
- Invicta Radio, Barcelona
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 279481
-
- alternative name: Establecimientos Lucarda || Radio Lucarda, S.L
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm
- from Radiomuseum.org

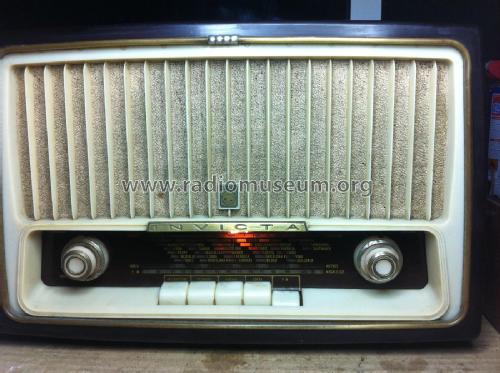

- Model: Peso 6472-FM - Invicta Radio, Barcelona
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Es posible que sea el mismo que el 6472-P o que cambie la banda pesquera por otra corta.
- Mentioned in
- Anuncio La Vanguardia Española diciembre 1960
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
