• Country
• Spain

• Manufacturer / Brand
• Invicta Radio, Barcelona

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209889

• • alternative name: Establecimientos Lucarda || Radio Lucarda, S.L

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

• Number of Transistors

• Semiconductors
• OC170 OC169 OC169 OC71 OC71 OC72 OC72 OA70

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm

• from Radiomuseum.org

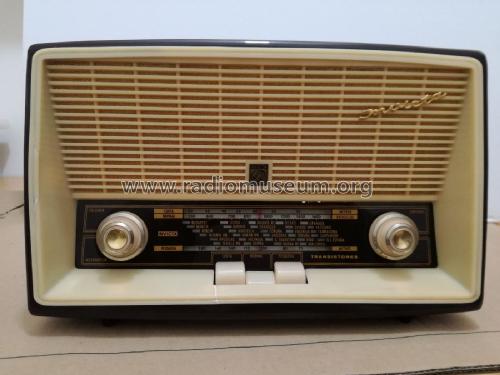

• Model: T-725 - Invicta Radio, Barcelona

• Author
• Model page created by Marcelino Iniesta Fernandez. See "Data change" for further contributors.
