Altoparlante C 13-39
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358084
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.9 cm = 4.7 inch
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante C 13-39 - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 129 x 129 x 63 mm / 5.1 x 5.1 x 2.5 inch
- Notes
-
Caratteristiche:
- Risposta in Frequenza: 130 ÷ 9.000 Hz
- Flusso: 8.300 Gauss
- Risonanza: 140 Hz
- Impedenza: 4 Ω
Numero di catalogo GBC: AC/0690-00.
- Mentioned in

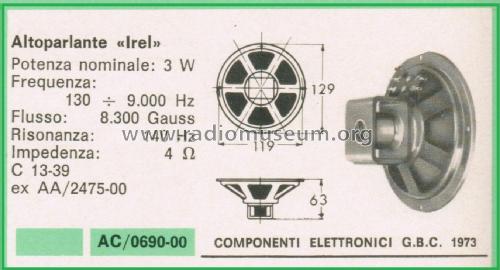

- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
