Altoparlante Ellittico E 15-21-90
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358677
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante Ellittico E 15-21-90 - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 210 x 150 x 92 mm / 8.3 x 5.9 x 3.6 inch
- Notes
-
Caratteristiche:
- Risposta in Frequenza: 70 ÷ 10.000 Hz
- Flusso: 9.200 Gauss
- Risonanza: 90 Hz
- Impedenza: 4 Ω
Numero di catalogo GBC: AC/1700-00.
- Mentioned in

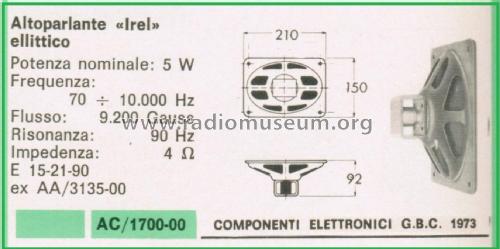

- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
