Altoparlante SC 10
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358036
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante SC 10 - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 100 x 100 x 33 mm / 3.9 x 3.9 x 1.3 inch
- Notes
-
Caratteristiche:
- Risposta in Frequenza: 180 ÷ 8.000 Hz
- Flusso: 7.000 Gauss
- Risonanza: 190 Hz
- Impedenza: 8 Ω
Numero di catalogo GBC: AC/0510-00
- Mentioned in

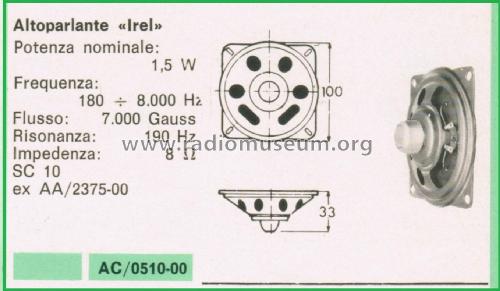

- -- Original prospect or advert (GBC Componenti Elettronici, edizione 1973.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
