Altoparlante Woofer MW/13/215X
IREL - Industrie Radio Elettriche Liguri, Genova
- Country
- Italy
- Manufacturer / Brand
- IREL - Industrie Radio Elettriche Liguri, Genova
- Year
- 1973 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 358971
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 12 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Altoparlante Woofer MW/13/215X - IREL - Industrie Radio
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 129 x 129 x 60 mm / 5.1 x 5.1 x 2.4 inch
- Notes
-
Da usare in box chiuso.
Caratteristiche:- Risposta in Frequenza: 50 ÷ 5.000 Hz
- Flusso: 10.500 Gauss
- Risonanza: 55 Hz
- Impedenza: 8 Ω
Numero di catalogo GBC: AC/2910-00.
- Mentioned in

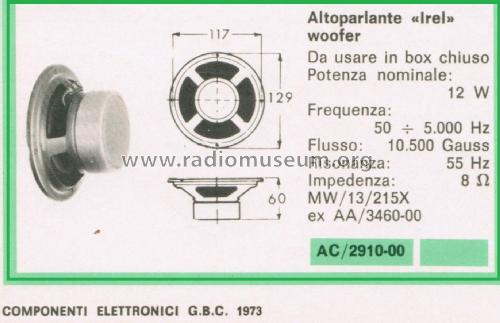

- -- Original prospect or advert (Da: GBC Componenti Elettronici, edizione 1973.)
