A244

A244; Irish Electrical Co. (ID = 2632432) Radio A244; Irish Electrical Co. (ID = 2633264) Radio
A244; Irish Electrical Co. (ID = 2633265) Radio
Use red slider bar for more.
A244; Irish Electrical Co. (ID = 2632432) Radio
Irish Electrical Co.: A244 [Radio] ID = 2632432 900x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model A244, Irish Electrical Co. Ltd., (IEC) Dundrum, Dublin:
ebay.com US auction item_232899629515 seller old-tool-shop

Country:  Ireland
Manufacturer / Brand:  Irish Electrical Co. Ltd., (IEC) Dundrum, Dublin
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 EZ40
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A244 - Irish Electrical Co. Ltd., IEC
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 270 x 210 mm / 15.4 x 10.6 x 8.3 inch
Notes

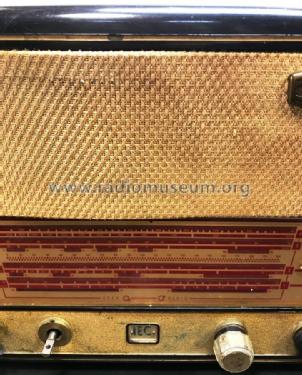

An AC mains MW / 3 x SW table radio housed in a bakelite cabinet. The same as the Mullard MAS244 table radio but sold with an IEC badge. Also sold as the Grundig Majestic A244 in the USA. Same cabinet as the Stella ST106A.

Model page created by Howard Craven. See "Data change" for further contributors.



All listed radios etc. from Irish Electrical Co. Ltd., (IEC) Dundrum, Dublin
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
