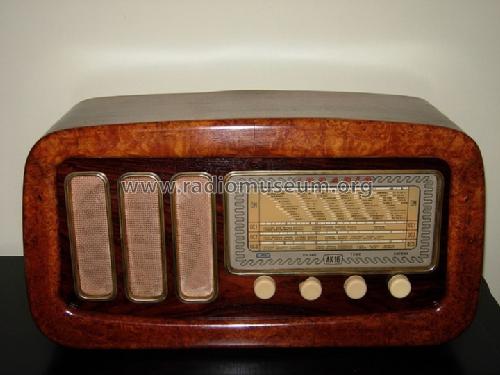

AK16; Irradio; Milano (ID = 1404450) Radio
Irradio; Milano: AK16 [Radio] ID = 1404450 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model AK16, Irradio; Milano
Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6K7 6Q7 6V6 5Y3
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Model: AK16 - Irradio; Milano

Onde Medie e 3 gamme di Onde Corte.
Ingresso per giradischi.

Source of data Collezione di Schemi, Scuola Radio Elettra 1953
Mentioned in Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 112)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra

Model page created by Alessandro De Poi. See "Data change" for further contributors.
