AM/FM Portable Radio Receiver RF-28

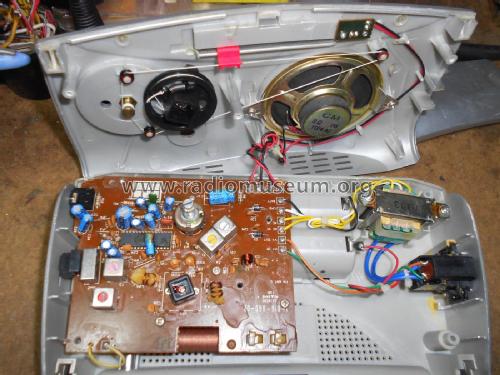

AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331587) Radio AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331593) Radio
AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331589) Radio AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331591) Radio
AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331584) Radio AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331585) Radio
AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 1617951) Radio AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 1617949) Radio
AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 1617950) Radio AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 1617952) Radio
Use red slider bar for more.
AM/FM Portable Radio Receiver RF-28; Irradio; Milano (ID = 2331587) Radio
Irradio; Milano: AM/FM Portable Radio Receiver RF-28 [Radio] ID = 2331587 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Portable Radio Receiver RF-28, Irradio; Milano

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 / UM-2: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: AM/FM Portable Radio Receiver RF-28 - Irradio; Milano
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 135 x 55 mm / 9.3 x 5.3 x 2.2 inch
Notes

Made in China.

controllo volume - antenna telescopica - maniglia di trasporto - presa per cuffia - commutatore AM/FM.

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)

Model page created by Aldo Andreani. See "Data change" for further contributors.
