BE10
Use red slider bar for more.

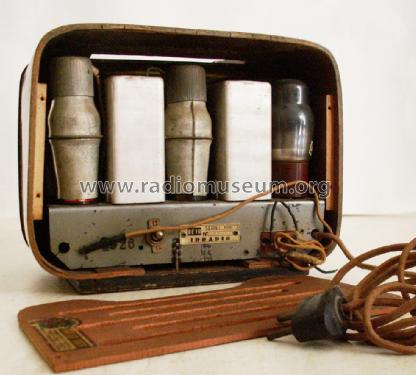

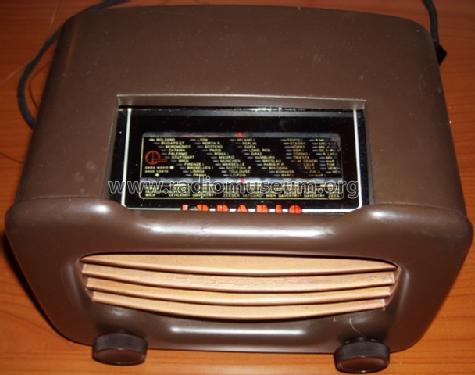

Irradio; Milano: BE10 [Radio] ID = 525503 357x307
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1940/1941 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 6A7 78 75 41 6X5 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 450 kHz |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) |
| Loudspeaker | -Loudspeaker incorporated, but system not known. |
| Power out | |
| from Radiomuseum.org | Model: BE10 - Irradio; Milano |
| Material | Wooden case |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 240 x 180 x 140 mm / 9.4 x 7.1 x 5.5 inch |
| Notes | Mobile in legno laccato. Lacquered wooden case. |
| Source of data | Guida Pratica Antique Radio III (2000) |
| Literature/Schematics (1) | Il Radio Libro, (Ravalico) 8.Ed. |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
