BM502

BM502; Irradio; Milano (ID = 1520291) Radio BM502; Irradio; Milano (ID = 1520294) Radio
BM502; Irradio; Milano (ID = 1520297) Radio BM502; Irradio; Milano (ID = 1520299) Radio

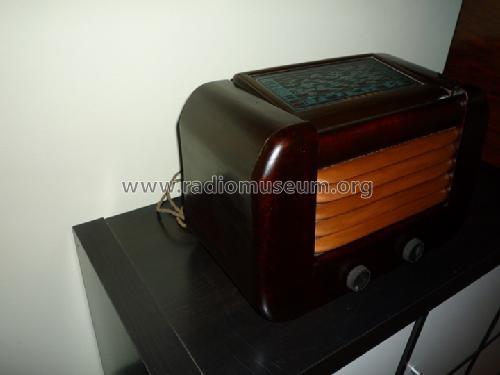

BM502; Irradio; Milano (ID = 1520306) Radio BM502; Irradio; Milano (ID = 1520309) Radio

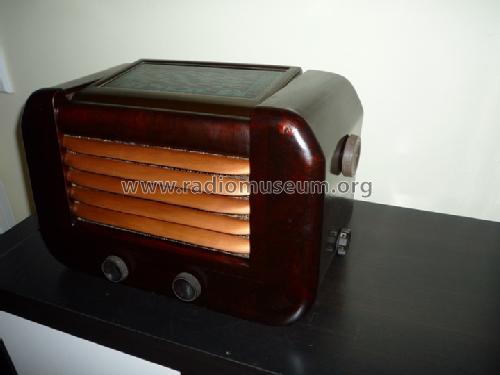

BM502; Irradio; Milano (ID = 1520311) Radio
Use red slider bar for more.

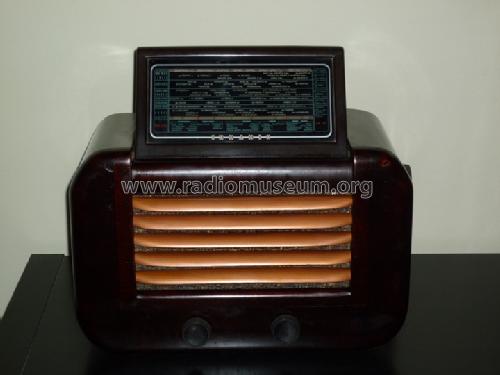

BM502; Irradio; Milano (ID = 1520291) Radio
Irradio; Milano: BM502 [Radio] ID = 1520291 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model BM502, Irradio; Milano

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 6AW5
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BM502 - Irradio; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 270 x 230 mm / 17.3 x 10.6 x 9.1 inch
Collectors' prices
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.
