• Country
• Italy

• Manufacturer / Brand
• Irradio; Milano

• Year
• 1975 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 282166

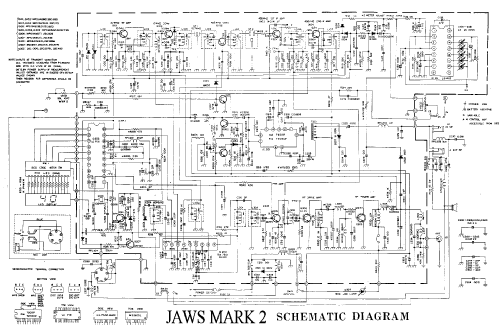

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: CB Transceiver Micro 2 Mark 2 - Irradio; Milano

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 117 x 37 x 210 mm / 4.6 x 1.5 x 8.3 inch

• Notes

• Apparato in BANDA CITTADINA

  Sintonia a PLL

  Frequenza 26.965MHz.... 27.405MHz; 40 channel AM

  Potenza in uscita 3,5 / 4 W

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Author
• Model page created by Antonio Bordini. See "Data change" for further contributors.
