Littore

Littore ; Irradio; Milano (ID = 228489) Radio
Littore ; Irradio; Milano (ID = 1287725) Radio Littore ; Irradio; Milano (ID = 224798) Radio
Littore ; Irradio; Milano (ID = 1287727) Radio Littore ; Irradio; Milano (ID = 1287729) Radio
Littore ; Irradio; Milano (ID = 1287732) Radio Littore ; Irradio; Milano (ID = 1331204) Radio
Littore ; Irradio; Milano (ID = 1427382) Radio Littore ; Irradio; Milano (ID = 1427383) Radio
Littore ; Irradio; Milano (ID = 1529586) Radio Littore ; Irradio; Milano (ID = 1949152) Radio
Use red slider bar for more.

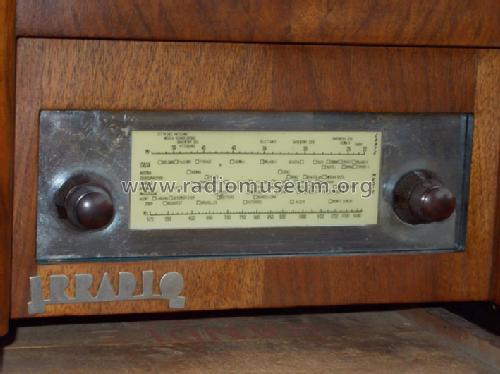

Littore ; Irradio; Milano (ID = 1287725) Radio
Irradio; Milano: Littore [Radio] ID = 1287725 709x935
Select picture or schematic to display from thumbnails on the right and click for download.
For model Littore, Irradio; Milano

Country:  Italy
Manufacturer / Brand:  Irradio; Milano
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 41 80
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Littore - Irradio; Milano
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes

Controllo di tono a 3 posizioni.

Price in first year of sale 995.00 LIT
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Irradio; Milano
Here you find 256 models, 184 with images and 109 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
