• Country
• Italy

• Manufacturer / Brand
• Irradio; Milano

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114006

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

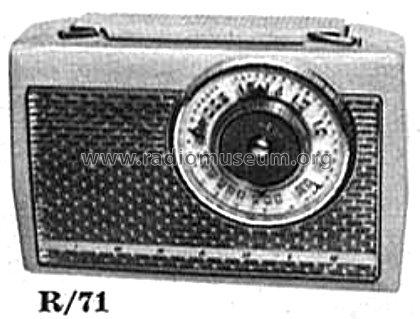

• Model: R71 - Irradio; Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 145 x 65 mm / 8.3 x 5.7 x 2.6 inch

• Notes
• Catalogo ANIE 1956-57 indica erroneamente anche FM tra le gamme d'onda.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Price in first year of sale
• 27,500.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1956-57)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 274 models, 201 with images and 121 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
