• Country
• Italy

• Manufacturer / Brand
• Irradio; Milano

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 242166

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz; 1 AF stage(s); none

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Power out
• 6 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

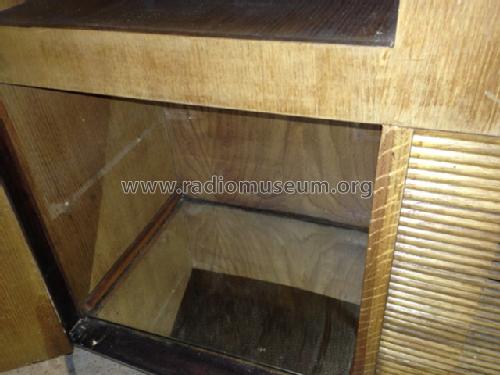

• Model: Radiogrammofono EX25 - Irradio; Milano

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 1100 x 500 x 900 mm / 43.3 x 19.7 x 35.4 inch

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Author
• Model page created by Leonardo Cabano. See "Data change" for further contributors.

• Other Models

• Here you find 274 models, 201 with images and 121 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
