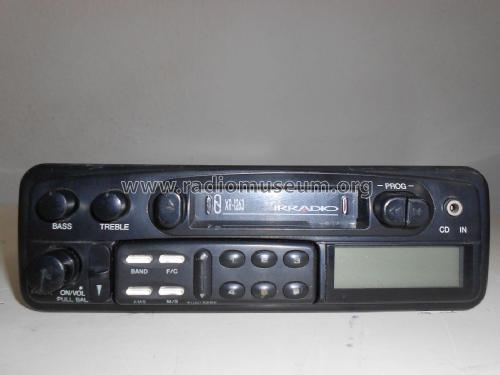

XR-1263

Irradio; Milano

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 303634

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: XR-1263 - Irradio; Milano
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 175 x 48 x 165 mm / 6.9 x 1.9 x 6.5 inch
  • Notes

  • controllo volume/bilanciamento/fader - controllo toni alti toni bassi - frontalino estraibile - autoreverse - presa frontale per CD In - commutatore band - F/C - AMS - M/S - 18 stazioni presintonizzabili - impedenza altoparlanti 4/8 Ω - potenza uscita: 25 watt x 2 ( 20 watt x 4) - frequency range: MW 522/1620 kHz - LW 144/281 kHz - FM 87.5/108 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 2.850 kg / 6 lb 4.4 oz (6.278 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
