- Country
- Belgium
- Manufacturer / Brand
- Isis Radio; Charleroi
- Year
- 1935 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93728
Bespannstoff nicht original.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110;130; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org

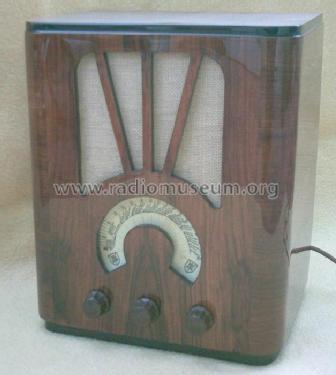

- Model: 113A - Isis Radio; Charleroi
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 405 x 330 x 235 mm / 15.9 x 13 x 9.3 inch
- Notes
-
See the original tube lineup: 78 43 6B7 6A7 25Z5. Somebody changed the 6A7 to a later 6K8! See the photo of the inside from Luc Comblin which shows an incorrect tube.
