HSB9001

Isophon, E. Fritz & Co. GmbH.; Berlin

Data
Forum
Pictures
Collections

  • Year
  • 1974/1975 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 110579
    • Brand: Isophon

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 90 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: HSB9001 - Isophon, E. Fritz & Co. GmbH.;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 670 x 430 x 300 mm / 26.4 x 16.9 x 11.8 inch
  • Notes

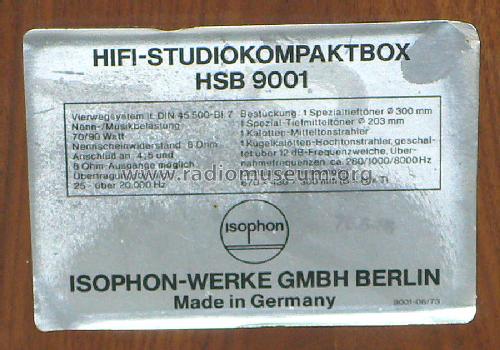

  • 4-Wege-Lautsprecherbox. Impendanz 8 Ohm. Bestückung: 1 Spezialtieftöner Ø = 300 mm, 1 Spezial-Mitteltonstrahler Ø = 203 mm, 1 Kalotten-Mitteltonstrahler, 1 Kugelkalotten- Hochtonstrahler geschaltet über 12-dB-Frequenzweiche.

    Nenn-/Musik-Belastbarkeit: 70 / 90 W
    Betriebsleistung: 2,2 W
    Frequenzbereich: 25 ... 20.000 Hz
    Gehäuse:
    Nussbaum Edelfurnier natur
    abnehmbares Ziergitter  Lautsprecherfront
    beigefügtes Kabel mit Normstecker, 4,2 m

  • Net weight (2.2 lb = 1 kg)
  • 24.8 kg / 54 lb 10 oz (54.626 lb)
  • Price in first year of sale
  • 945.00 DM
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
