• Country
• Germany

• Manufacturer / Brand
• Isophon, E. Fritz & Co. GmbH.; Berlin

• Year
• 1959

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 223229

• • Brand: Isophon

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 203 cm = 79.9 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: Lautsprecher P 203 T - Isophon, E. Fritz & Co. GmbH.;

• Shape
• Chassis only or for «building in»

• Notes
• Isophon Lautsprecher P203T,
  Nennbelastbarkeit 6 VA, Impedanz 4 Ω, Frequenzbereich 50 - 6000 Hz.

• Net weight (2.2 lb = 1 kg)
• 1.040 kg / 2 lb 4.7 oz (2.291 lb)

• Mentioned in

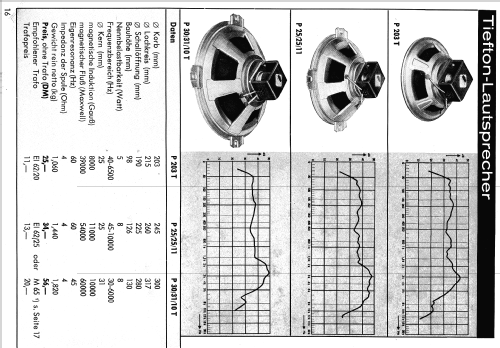

• -- Original prospect or advert (Isophon Katalog 1959)

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
