Peer electronic 1320a 5112 03 19, 5112 03 21, 5112 03 29

ITT-Graetz

  • Year
  • 1968/1969
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 291193

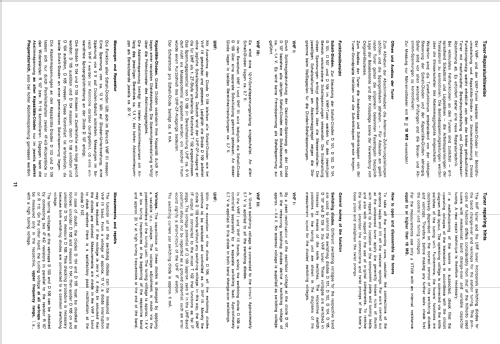

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Peer electronic 1320a 5112 03 19, 5112 03 21, 5112 03 29 - ITT-Graetz
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 519 x 379 x 325 mm / 20.4 x 14.9 x 12.8 inch
  • Notes
  • Tragbares 51 cm S/W Fernsehgerät ITT-Schaub Lorenz Peer electronic 1320a, mit oben eingelassenen Griff.

    VHF und UHF

    Ausführungen:

    • Type 5112 03 19 Nußbaum hell matt
    • Type 5112 03 21 Schleiflack altweiss
    • Type 5112 03 29 Rio-Palisander, front weiss
