• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1978

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 159942

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• BC172 BF120 BA157 BA157 BA157 AA143 BAV21 BAV21 1N4148 SAA1024

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage

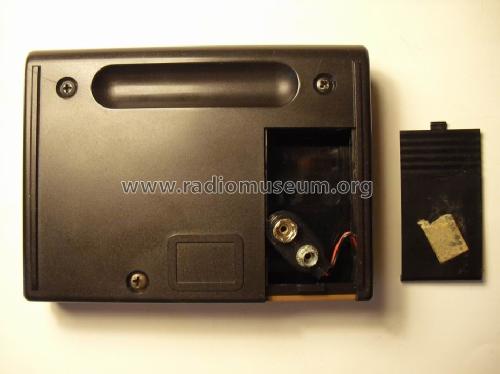

• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Ideal-Computer Programm-Cassette UFB9 - ITT Schaub-Lorenz

• Shape
• Miscellaneous shapes - described under notes.

• Notes
• Ideal-Computer Programm-Cassette UFB9;

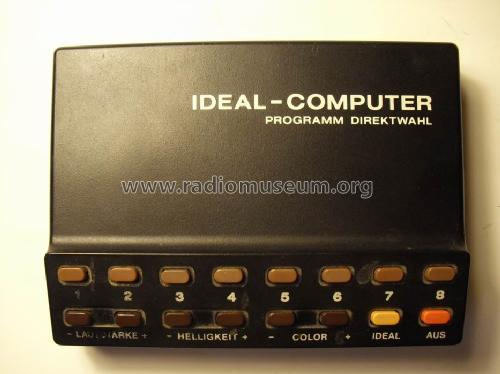

  Ultraschallhandfernbedienung für Ideal-Color TV Gerät Typ 1960, 8 Programmtasten sowie 8 Tasten für TV Grundfunktionen - Tastenfunktionen in Klartext ausgeschrieben.
  Ideal-Computer UFB9L (ohne Aufschrift "Programm-Cassette");
  Augenscheinlich baugleiche Fernbedienung jedoch nur mit Symbolzeichen. Für z.B. Ideal-Color Typ 3620 aus 1978.

• Source of data

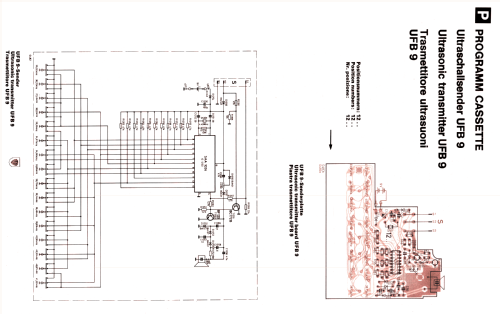

• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
