• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124790

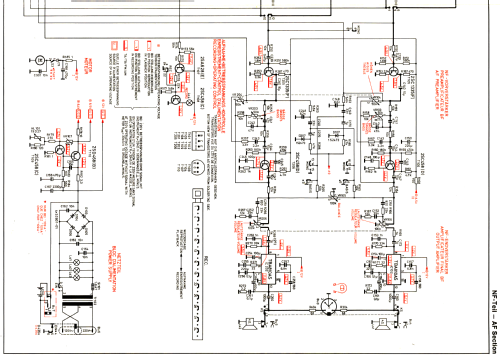

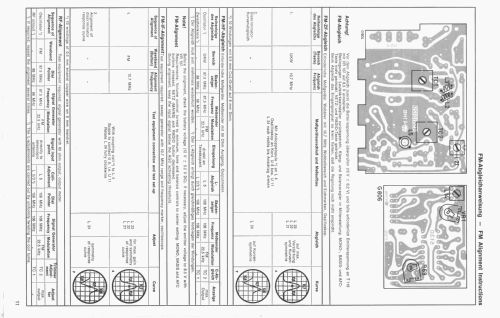

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 8×1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 10 W (max.)

• from Radiomuseum.org
• Model: Intercontinental Stereo Cassette - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 290 x 110 mm / 17.3 x 11.4 x 4.3 inch

• Notes

• ITT Schaub Lorenz 5-Band Stereo Cassette Receiver Model Intercontinental Stereo Cassette.
  2x 5 Watts Music Power
  3 Digit Analog Tape Counter
  Full Auto Stop, Automatic Level Control
  Headphone Jack
  Phono IN, Tape IN


  ICs: 5.
  Stereo-NF-Verstärker mit 2 Endstufen je 5 W (Musik). Zwei eingebaute Elektret-Mikrofone.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
