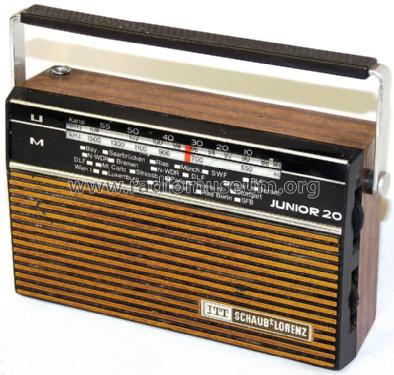

ITT Schaub-Lorenz: Junior 20 52330305 [Radio] ID = 1224242 808x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior 20 52330305, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1970/1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: CS9016 CS9018 1N34A CS9018 CD0000 CS1312 CS9018 1N60 1N60 1N34A CS1312 BT1 CS1312 2SB364 2SD104
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Junior 20 52330305 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 157 x 97 x 45 mm / 6.2 x 3.8 x 1.8 inch
Notes   UKW: 87,5 - 104 MHz
MW: 510 - 1620 kHz

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
