2SB364

Information - Help
ID = 36640

Country:
Japan
Brand: Toshiba Corporation; Tokyo
Tube type:  Transistor   Audio Frequency
Identical to 2SB364
Similar Tubes
Normally replaceable-slightly different:
  2SB365
Different maximum ratings:
  AC128

Base Wires
Filament Solid State
Description

Material/Aufbau/Pol.: Germanium Legierung PNP;
Form/Case/Outline: TO-1;
Daten/electr.data: I F: 100 mA, U S: <0.1 V, Isp: <14 µA, ß (beta): 60-150, N: 150 mW, Imax (Ic): 400 mA, Umax (Uce): -20 V, f g(FT): 1 MHz, tmax j: 75 °C.
-


Dimensions (WHD)
incl. pins / tip
6 x 10 x mm / 0.24 x 0.39 x inch
Weight 1 g / 0.04 oz
Literature -- Collector info (Sammler)   TTT Steidle 1981

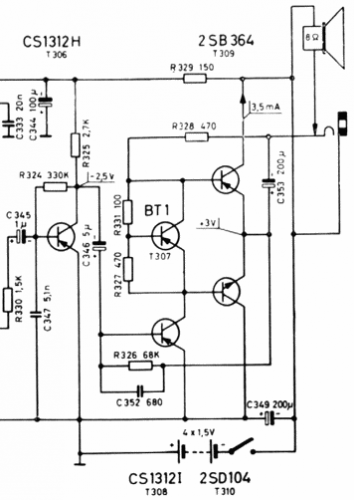

  2SB364: Schaub Lorenz Junior 20
Günther Stabe

2SB364: aus eigener Sammlung
Karl-Heinz Entrich


2SB364: TTT Steidle 1981
Günther Stabe



Usage in Models 1= 1965? ; 1= 1966? ; 1= 1967?? ; 2= 1968 ; 1= 1969? ; 5= 1969 ; 1= 1970?? ; 1= 1970? ; 5= 1970 ; 1= 1971?? ; 5= 1971 ; 3= 1972 ; 1= 1973? ; 4= 1973 ; 1= 1974 ; 1= 1975?? ; 1= 1975 ; 1= 1976

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):36
