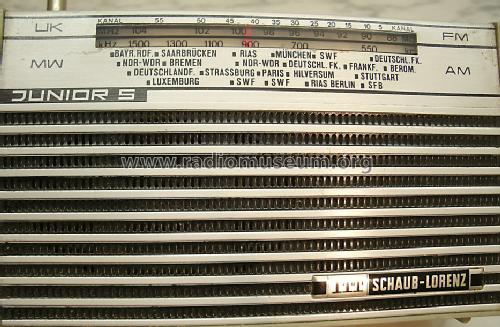

Junior S; ITT Schaub-Lorenz (ID = 1294026) Radio
ITT Schaub-Lorenz: Junior S [Radio] ID = 1294026 933x884
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior S, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: CS9016 CS9018 CS1312 CS9012 CS9013 1N34A CD0000 1N60 CD0021
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Junior S - ITT Schaub-Lorenz
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 160 x 100 x 45 mm / 6.3 x 3.9 x 1.8 inch
Notes Halbleiter teils mehrfach vorhanden

UKW: 87,5 - 104 MHz
MW: 510 - 1620 kHz

Ausführungen: 151869 = anthrazit, 151863 = blau.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers. (ITT/Schaub-Lorenz/Graetz Rundfunkgeräte-Service 1967/68)
