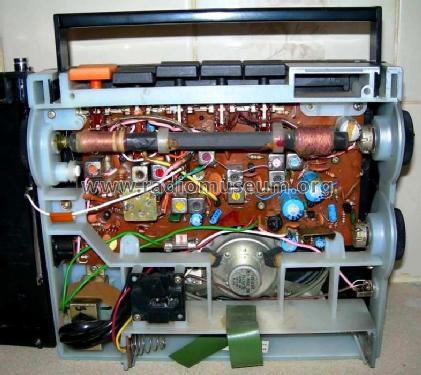

Pinto ; ITT-KB; Foots Cray, (ID = 448585) Radio Pinto ; ITT-KB; Foots Cray, (ID = 2034598) Radio
Pinto ; ITT-KB; Foots Cray, (ID = 2034599) Radio Pinto ; ITT-KB; Foots Cray, (ID = 2034600) Radio

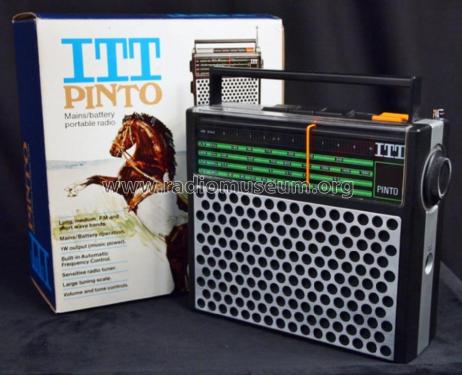

Pinto ; ITT-KB; Foots Cray, (ID = 1145920) Radio Pinto ; ITT-KB; Foots Cray, (ID = 1145925) Radio
Pinto ; ITT-KB; Foots Cray, (ID = 1145934) Radio Pinto ; ITT-KB; Foots Cray, (ID = 1260415) Radio
Use red slider bar for more.

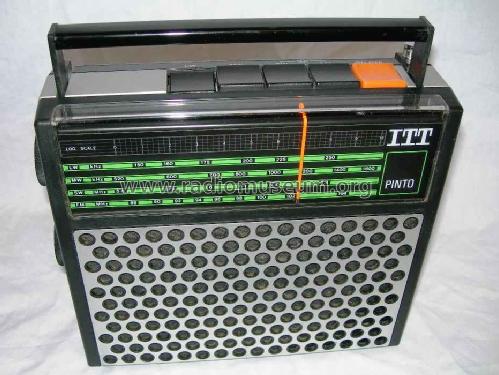

Pinto ; ITT-KB; Foots Cray, (ID = 219233) Radio
ITT-KB; Foots Cray,: Pinto [Radio] ID = 219233 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pinto, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes):
My ITT Pinto MW/LW/SW/FM radio circa 1977

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: CS9016 ED1502 ED592 ED592 ED592 MPS9680 ED1602 unknown_tr MPS9460 MPS9410
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Pinto - ITT-KB; Foots Cray, Kent; ITT
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 195 x 73 mm / 9.1 x 7.7 x 2.9 inch
Notes

LW  145-260 kHz
MW 510-1620 kHz
SW 5.8-6.3 MHz (49 m band)
FM  87.5-104 MHz

Two different dials exist, one with UK stations marked on it.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Source of data -- Collector info (Sammler)

Model page created by Howard Craven. See "Data change" for further contributors.
