Pony 300
Use red slider bar for more.

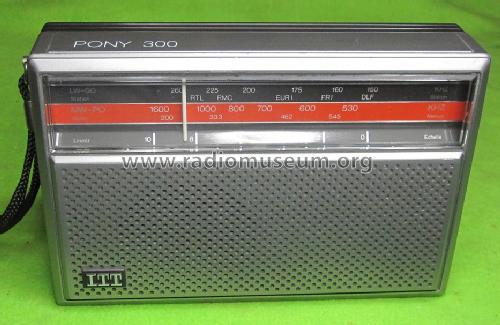

ITT-KB; Foots Cray,: Pony 300 [Radio] ID = 1658704 933x607
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1983 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. TBA820M |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 4 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Pony 300 - ITT-KB; Foots Cray, Kent; ITT |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 175 x 120 x 50 mm / 6.9 x 4.7 x 2 inch |
| Notes | ITT Made in Malaysia for the UK. |
| Net weight (2.2 lb = 1 kg) | 0.4 kg / 0 lb 14.1 oz (0.881 lb) |
Model page created by Howard Craven. See "Data change" for further contributors.
All listed radios etc. from ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Here you find 180 models, 151 with images and 71 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

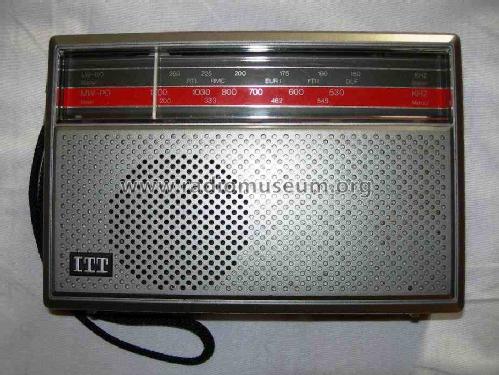

Collection of a member from GB
