For model Touring europa 52150105 royalblau, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 7,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Touring europa 52150105 [royalblau] - ITT Schaub-Lorenz
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch
Notes Bei anderer Gehäusefarbe Bilder zum richtigen Modell laden
52120101 = anthrazit
52150105 = royalblau
52150107 = weinrot
52150109 = dunkelgrün
52150111 = Dekor nußbaum
52150113 = hellgrau
52150149 = schwarz
52150151 = Dekor Teak
52150153 = Dekor Palisander
52150155 = Dekor Eiche
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)

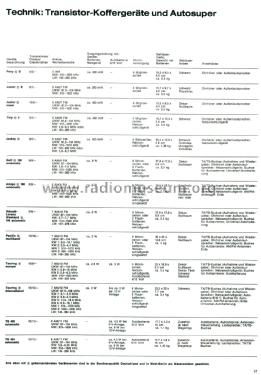

Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
