TOURING europa S 52150193

ITT Schaub-Lorenz

  • Year
  • 1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 75093

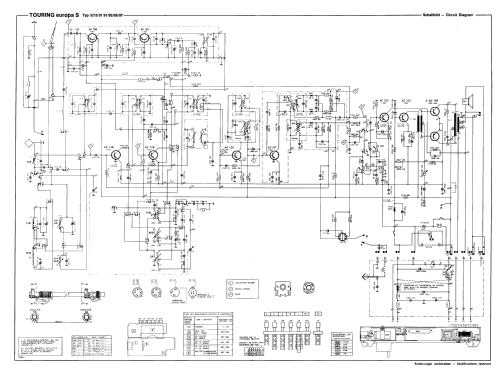

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 7,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TOURING europa S 52150193 - ITT Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch
  • Notes
  • 4 Farben: 521501-91 = Dekor Nußbaum, 521501-93 = schwarz, 521501-95 = weinrot, 521501-97 = Dekor Teak. Autohalterungsanschluss. Wir listen alle vier Modelle, da vier verschiedene Typenbezeichnungen vorkommen. Bilder bitte auf das entsprechende Modell (Farbe) laden. Danke.
  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
