For model TOURING europa S 52150197, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Dry Batteries / 7,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: TOURING europa S 52150197 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 188 x 93 mm / 11.8 x 7.4 x 3.7 inch
Notes 4 Farben: 521501-91 = Dekor Nußbaum, 521501-93 = schwarz, 521501-95 = weinrot, 521501-97 = Dekor Teak. Autohalterungsanschluss. Wir listen alle vier Modelle, da vier verschiedene Typenbezeichnungen vorkommen. Bilder bitte auf das entsprechende Modell (Farbe) laden. Danke.
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Source of data Radiokatalog Band 2, Ernst Erb

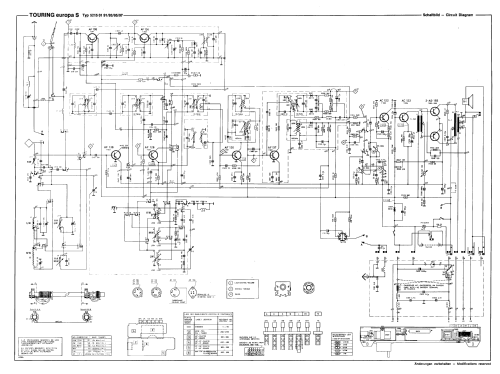

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
