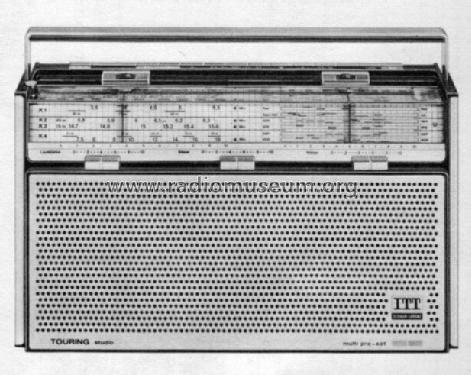

ITT Schaub-Lorenz: TOURING studio 104 A 52151439 [Radio] ID = 915374 837x620
Select picture or schematic to display from thumbnails on the right and click for download.
For model TOURING studio 104 A 52151439, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 127; 220 / 8 × 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: TOURING studio 104 A 52151439 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 215 x 87 mm / 15 x 8.5 x 3.4 inch
Notes 4 IC (TBA480, TAA991D, TBA810, TBA331)
4 KW-Bänder
Abstimmung über Schieber, dazu 2 UKW und 1 AM Senderspeicher
Paralleltype zu Touring international 104A.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 329.00 DM
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
