Weekend Stereo 107 52130275; ITT Schaub-Lorenz (ID = 211531) Radio

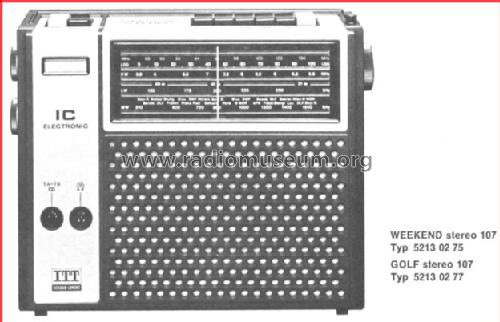

ITT Schaub-Lorenz: Weekend Stereo 107 52130275 [Radio] ID = 211531 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weekend Stereo 107 52130275, ITT Schaub-Lorenz:

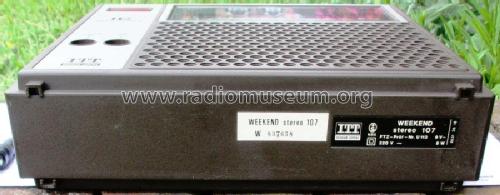

My ITT Schaub-Lorenz Weekend stereo 107 in perfect cosmetic condition. When tuned into an FM radio programme broadcasting in stereo, the red 'STEREO' indicator lights up and one can listen in stereo via headphones. A very nice radio.

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: 2SC784 2SC785 2SC381 ED1502 2SC373 CS9013 CDG00 1N60 LA3301 TBA810
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; (6 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Weekend Stereo 107 52130275 - ITT Schaub-Lorenz
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 305 x 240 x 80 mm / 12 x 9.4 x 3.1 inch
Notes

ICs: 2.
Eingebauter Stereo-Decoder; Stereo-Wiedergabe über Kopfhörer. Siehe auch die nahezu identische Ausführung für Grossbritanien. Wahrscheinlich wurden beide Ausführungen in Hong-Kong gefertigt, für das britische Modell ist das belegt.

Halbleiterliste: nur einmal pro Typ.

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jürgen Küting. See "Data change" for further contributors.
