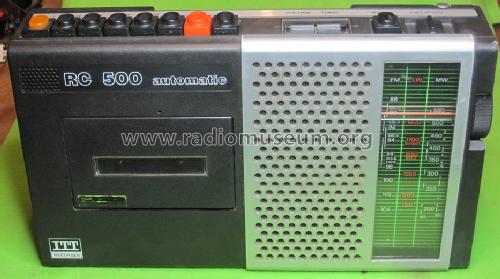

Automatic RC500/A; ITT-KB; Foots Cray, (ID = 1590122) Radio
ITT-KB; Foots Cray,: Automatic RC500/A [Radio] ID = 1590122 933x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic RC500/A, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22: 2SC1342 2SC461 2SC460 2SC460 2SC460 2SC460 2SC458 2SC458 2SB534 2SB534 2SC1344 2SC458 2SC458 2SC458 2SA672 2SC1213 2SC458 2SC458 2SB370 2SC711 2SC458 2SC711
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player

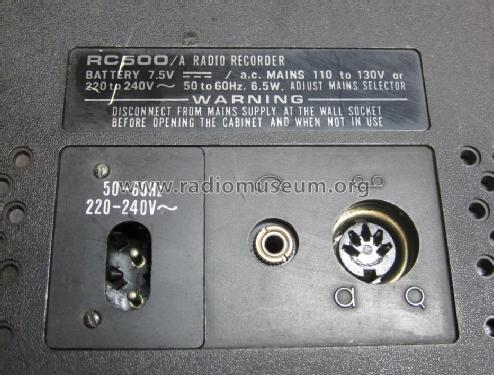

Power type and voltage Line / Batteries (any type) / AC: 110-150 / 200-240 / DC: 5 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.65 W (max.)
from Radiomuseum.org Model: Automatic RC500/A - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 321 x 197 x 76 mm / 12.6 x 7.8 x 3 inch
Notes

End of tape mechanical pushbutton release.
Weight includes batteries.
Made in Taiwan.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)

Model page created by Mike Edwards. See "Data change" for further contributors.
