Golf

Golf ; ITT-KB; Foots Cray, (ID = 1763163) Radio
Golf ; ITT-KB; Foots Cray, (ID = 1763152) Radio Golf ; ITT-KB; Foots Cray, (ID = 1763153) Radio
Golf ; ITT-KB; Foots Cray, (ID = 1763154) Radio Golf ; ITT-KB; Foots Cray, (ID = 1763156) Radio
Golf ; ITT-KB; Foots Cray, (ID = 1763159) Radio Golf ; ITT-KB; Foots Cray, (ID = 1763166) Radio
Use red slider bar for more.
Golf ; ITT-KB; Foots Cray, (ID = 1763152) Radio

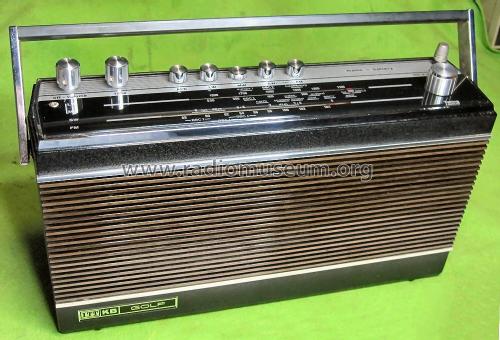

ITT-KB; Foots Cray,: Golf [Radio] ID = 1763152 1000x681
Select picture or schematic to display from thumbnails on the right and click for download.
For model Golf, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes):

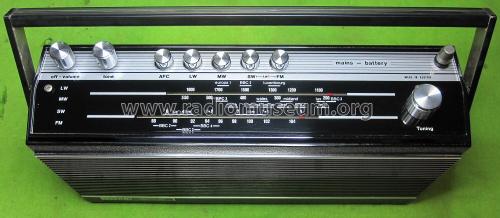

Although they are a very good match the volume and tone control knobs are not original

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF126 AF124 AF136 AF138 AF137 BC158 BC148 AC179 AC178 AC117
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 200-240; 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Golf - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 350 x 69 x 81 mm / 13.8 x 2.7 x 3.2 inch
Notes

Made in Austria

See also ITT Schaub-Lorenz GOLF 101

Dates and prices from Radio! Radio! 3rd Edition 1996

Price in first year of sale 31.95 GBP

Model page created by Mike Edwards. See "Data change" for further contributors.
