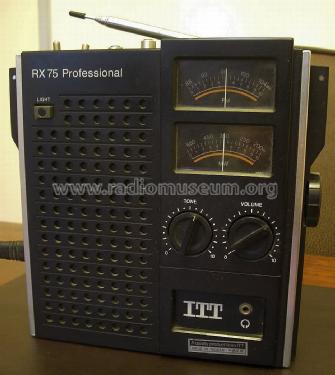

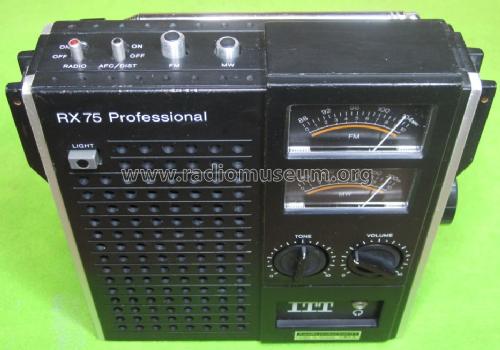

For model ITT RX 75 Professional English, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes):
The carry strap is missing and one alluminium trim is missing from the back right.

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC461 2SC535 2SC460 2SC460 2SC460 2SC460 2SC458 2SC175 2SB324 2SB324
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 240; 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: ITT RX 75 Professional [English] - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 185 x 185 x 60 mm / 7.3 x 7.3 x 2.4 inch
Notes

ITT RX 75 Professional;
Same chassis and cabinet as ITT "Schaub Lorenz RX 75 Professional" but English labeled, 240 VAC mains voltage,

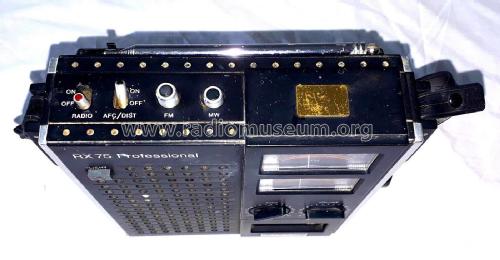

Features: dial light, tone control volume control, separate manually linked tuning display instruments for AM & FM-VHF for scales, (simulated moving coil meters) earphones jack, AFC, sold by ITT UK.

FM coverage 88 MHz to 104 MHz
