Twin Speaker KA1081

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585141) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585140) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585138) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585137) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585139) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585142) Ampl/Mixer

Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1585143) Ampl/Mixer
Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1671810) Ampl/Mixer Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1671811) Ampl/Mixer
Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720149) Ampl/Mixer Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720150) Ampl/Mixer
Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720151) Ampl/Mixer Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720152) Ampl/Mixer
Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720153) Ampl/Mixer Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1720154) Ampl/Mixer
Use red slider bar for more.
Twin Speaker KA1081; ITT-KB; Foots Cray, (ID = 1671810) Ampl/Mixer
ITT-KB; Foots Cray,: Twin Speaker KA1081 [Ampl/Mixer] ID = 1671810 933x865

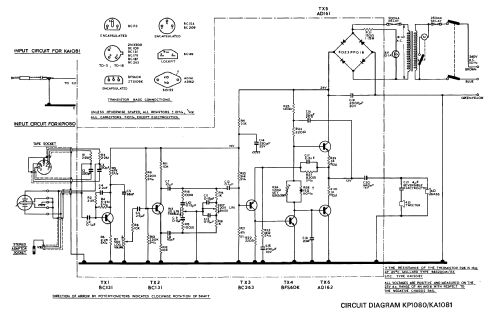

Select picture or schematic to display from thumbnails on the right and click for download.
For model Twin Speaker KA1081, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes):

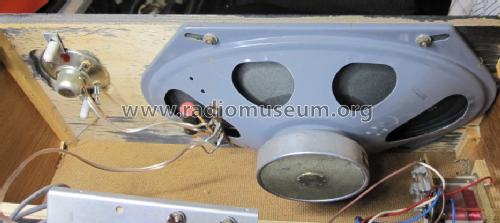

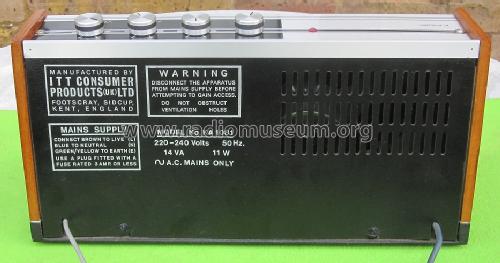

photo from past ebay auction

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1970 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 6: BC131 BC131 BC236 BFS60K AD161 AD162
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (max.)
from Radiomuseum.org Model: Twin Speaker KA1081 - ITT-KB; Foots Cray, Kent; ITT
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 388 x 200 x 162 mm / 15.3 x 7.9 x 6.4 inch
Notes

Mains self powered amplifier designed for use with KB KP1080 record player to enable stereo operation.

For service information see KB KP1080

Source of data -- Original-techn. papers.

Model page created by Mike Edwards. See "Data change" for further contributors.



All listed radios etc. from ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Here you find 166 models, 135 with images and 57 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
