- Country
- Great Britain (UK)
- Manufacturer / Brand
- ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244985
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 30
- Semiconductors
- AF106 AF125 AF125 AF125 AF125 BC149 AC126 AC126 AC126 AC126 BC148 AC127 BC131 BC131 BC131 BC131 BC263 BC147 BC130 BC207 BC225 AD161 AD162 BC263 BC147 BC130 BC207 BC225 AD161 AD162
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (undistorted)
- Material
- Various materials
- from Radiomuseum.org
- Model: KA2010 - ITT-KB; Foots Cray, Kent; ITT
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 632 x 203 x 404 mm / 24.9 x 8 x 15.9 inch
- Notes
-
VHF/FM coverage 86 - 102 MHz
Height measurement includes lid
Audio power output = 10 watts per channel at less than 0.5% distortion at 1kHz. Speakers = 4 ohm minimum
Frequency response -3db at 50Hz and 20kHz

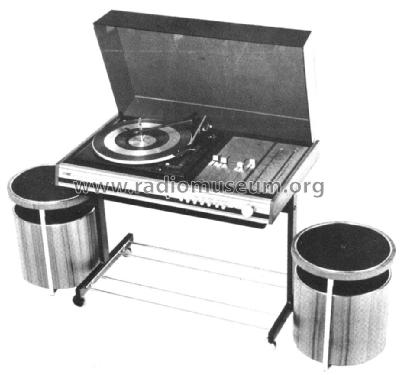

Tape input/output socket 5 pin DINKA2010 Standard Stereo System supplied with KS653 Loudspeakers.
KA2010 Deluxe Stereo System supplied with KS658 Luodspeakers
Could also be supplied with Stereo Decoder as an optional extra.
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
