KR610

KR610; ITT-KB; Foots Cray, (ID = 1578616) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578626) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578621) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578624) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578625) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578618) Radio

KR610; ITT-KB; Foots Cray, (ID = 1578619) Radio
KR610; ITT-KB; Foots Cray, (ID = 1355323) Radio KR610; ITT-KB; Foots Cray, (ID = 1355324) Radio
KR610; ITT-KB; Foots Cray, (ID = 1355325) Radio KR610; ITT-KB; Foots Cray, (ID = 1355326) Radio
Use red slider bar for more.
KR610; ITT-KB; Foots Cray, (ID = 1355323) Radio
ITT-KB; Foots Cray,: KR610 [Radio] ID = 1355323 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model KR610, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: CS1508 CS1509 CS1509 MPS6580 CS1509 CS1312 CS1506 AC117 AC175 AC175
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: KR610 - ITT-KB; Foots Cray, Kent; ITT
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 215 x 123 x 70 mm / 8.5 x 4.8 x 2.8 inch
Notes

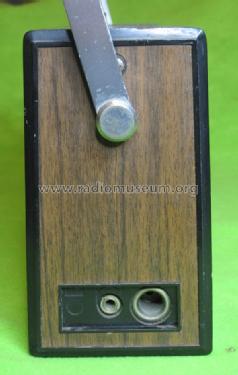

Sockets for earphone and car aerial. Elliptical loudspeaker 5 x 3 inch.

Circuit is electrically similar to the ITT-KB Weekend  Tuning cord differs and circuit voltages are proportionately more as the Weekend used a 9v supply.

See also ITT Schaub-Lorenz TEDDY 40.

Net weight (2.2 lb = 1 kg) 2 lb 10 oz (2.625 lb) / 1.192 kg
Price in first year of sale 17.85 UK £
Mentioned in Radio! Radio! (Date and price from Radio Radio, (Hill), page 260)

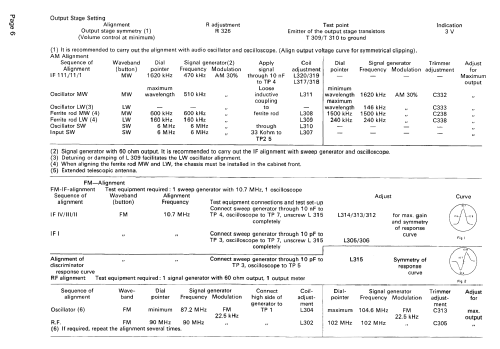

Literature/Schematics (1) ERT Service Chart 1808

Model page created by Howard Craven. See "Data change" for further contributors.
