• Year
  • 1972
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 281647

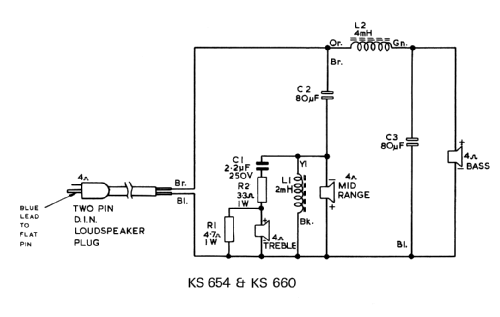

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 20 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Loudspeaker KS660 - ITT-KB; Foots Cray, Kent; ITT
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 405 x 705 x 242 mm / 15.9 x 27.8 x 9.5 inch
  • Notes

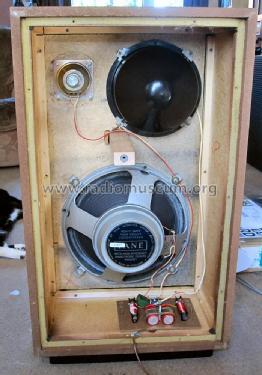

  • Teak veneered floor standing cabinet, with front padded and covered with black acoustic cloth.

    3 way Hi Fi Loudspeaker, Drivers: Bass 305 mm, Mid range 150x100 mm, Tweeter 84 mm.
    Impedance 4 ohms.

  • Price in first year of sale
  • 68.00 GBP
