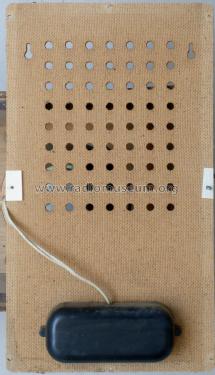

Акустическая система - 3АС-509 Acoustic system - 3АS-509

Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280863) Speaker-P Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280864) Speaker-P
Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280865) Speaker-P Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280866) Speaker-P
Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280867) Speaker-P Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2281213) Speaker-P
Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2281214) Speaker-P Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2281215) Speaker-P
Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2281216) Speaker-P
Use red slider bar for more.
Акустическая система - 3АС-509 Acoustic system - 3АS-509; Izhevsk Radio Works (ID = 2280863) Speaker-P
Izhevsk Radio Works: Акустическая система - 3АС-509 Acoustic system - 3АS-509 [Speaker-P] ID = 2280863 1400x1873
Select picture or schematic to display from thumbnails on the right and click for download.
For model Акустическая система - 3АС-509 Acoustic system - 3АS-509, Izhevsk Radio Works:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Soviet Union
Manufacturer / Brand:  Izhevsk Radio Works
Year: 1978–1983 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Акустическая система - 3АС-509 Acoustic system - 3АS-509 - Izhevsk Radio Works
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 200 x 380 x 185 mm / 7.9 x 15 x 7.3 inch
Notes

100-10000 Hz. 4 Ohm.

Speaker  3ГД-85 or  2ГД-38.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
