Ûgdon {Югдон} (Jugdon)

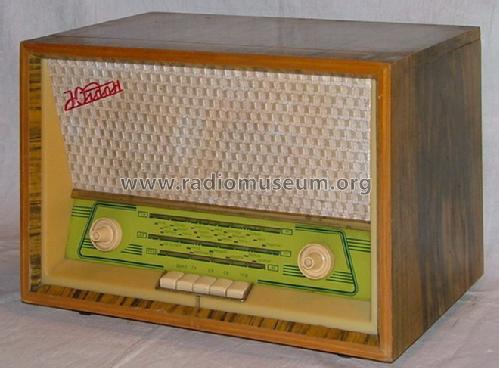

Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112967) Radio Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112966) Radio
Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112969) Radio Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112968) Radio
Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112971) Radio Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 2076275) Radio
Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 2076276) Radio Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 2076277) Radio
Use red slider bar for more.
Ûgdon {Югдон} ; Izhevsk Radio Works (ID = 112967) Radio
Izhevsk Radio Works: Ûgdon {Югдон} [Radio] ID = 112967 590x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ûgdon {Югдон} (Jugdon), Izhevsk Radio Works:
Kaunas Lithuania

Country:  Soviet Union
Manufacturer / Brand:  Izhevsk Radio Works
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6Н3П 6И1П 6К4П 6Н2П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 127, 220 Volt
Loudspeaker 2 Loudspeakers
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Ûgdon {Югдон} - Izhevsk Radio Works
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 497 x 347 x 330 mm / 19.6 x 13.7 x 13 inch
Notes FM-Coverage 65,8 - 73 MHz
Net weight (2.2 lb = 1 kg) 15.5 kg / 34 lb 2.3 oz (34.141 lb)
Price in first year of sale 70.00 RUB
Mentioned in E.A.Levitin, Radio sets, Moscow 1967

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Izhevsk Radio Works
Here you find 14 models, 13 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
