Herold HW1 AJ

Herold HW1 AJ; Jacobi; Radio-, (ID = 1288097) Radio
Herold HW1 AJ; Jacobi; Radio-, (ID = 1288207) Radio Herold HW1 AJ; Jacobi; Radio-, (ID = 35242) Radio
Herold HW1 AJ; Jacobi; Radio-, (ID = 1288209) Radio Herold HW1 AJ; Jacobi; Radio-, (ID = 1288215) Radio
Use red slider bar for more.

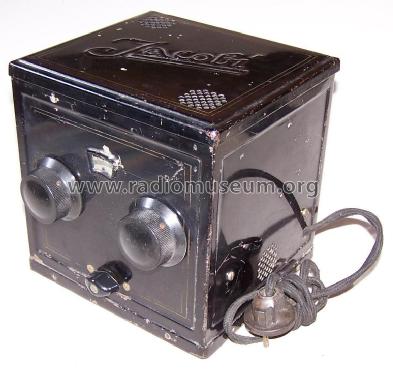

Herold HW1 AJ; Jacobi; Radio-, (ID = 1288207) Radio
Jacobi; Radio-,: Herold HW1 AJ [Radio] ID = 1288207 774x738
Select picture or schematic to display from thumbnails on the right and click for download.
For model Herold HW1 AJ, Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien

Country:  Austria
Manufacturer / Brand:  Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien
alternative name

Vocaphon-Radio-Vertriebsgesellschaft
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E438 B409 1801
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 93-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Herold HW1 AJ - Jacobi; Radio-, Telegraphen-
Material Metal case
Dimensions (WHD) 180 x 180 x 180 mm / 7.1 x 7.1 x 7.1 inch
Notes Wellenbereich 200 bis 600 m.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 199.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Radio-Amateur Wien (RA, 46), (Österreichischer Radio Amateur, ÖRA) (3009B)


All listed radios etc. from Jacobi; Radio-, Telegraphen- und Telephonwerke H. Jacobi & Co.; Wien
Here you find 52 models, 32 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Jacobi; Radio-,: Herold HW1 AJ
Threads: 1 | Posts: 1
Hits: 1262     Replies: 0
jacobi: Herold
Gerhard Heigl
10.Dec.03
  1 Laut "Museum Bote" wird auch ein "Herold-Stabempfänger" genannt, dieser enthält die Telefunken Aussensteuerröhren. (Messebericht im Radio-Amateur 1930 H10 S785)
