For model 5010 5010U, Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ:

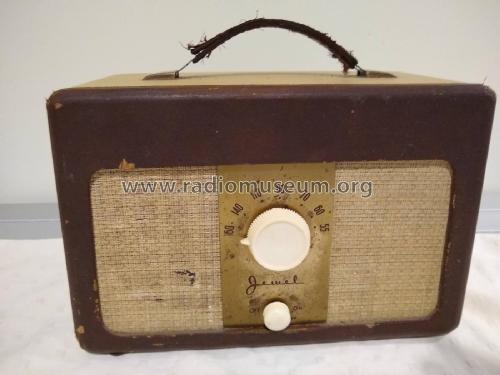

front

Country:  United States of America (USA)
Manufacturer / Brand:  Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1U5 3V4
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).

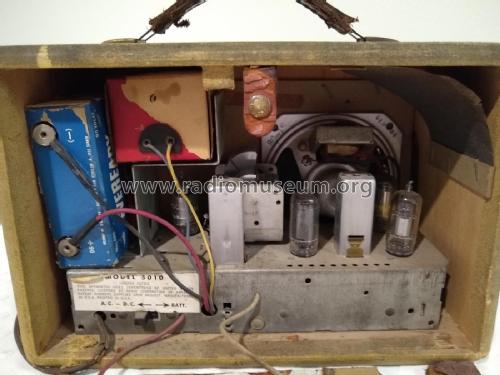

Details
Power type and voltage Line / Batteries (any type) / 90; 7,5; 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5010 5010U - Jewel Radio Corp.; New York,
Shape Portable set > 8 inch (also usable without mains)
Notes sometimes 5010 (Bunis/Slusser, Sam's, Grinder), sometimes 5010U (Rider's, Beitman). We cannot find any difference yet between 5010 and 5010U.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951
Literature/Schematics (2) Photofact Folder, Howard W. SAMS (Set 111, Folder 7)
