814 ; Jewel Radio Corp.; (ID = 242065) Radio

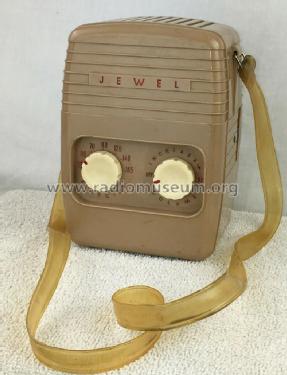

Jewel Radio Corp.;: 814 [Radio] ID = 242065 622x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 814, Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ:
Ebay Nr. 190015556503 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5; 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 814 - Jewel Radio Corp.; New York,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes

Battery Operated Portable Superheterodyne Receiver with Loop Antenna

AM: 540-1630kc

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (4821-10 Set 51 Folder 10)
Literature/Schematics (2) Machine Age to Jet Age II (page 161.)
