956 ; Jewel Radio Corp.; (ID = 2386551) Radio

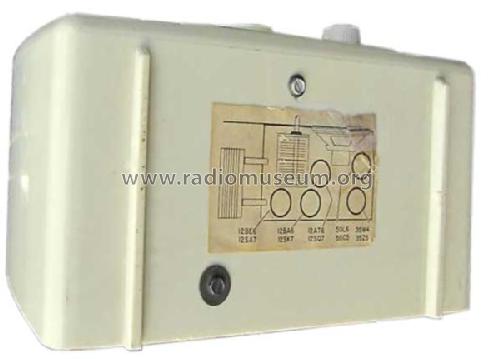

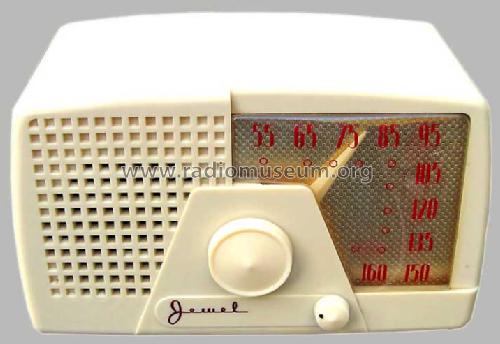

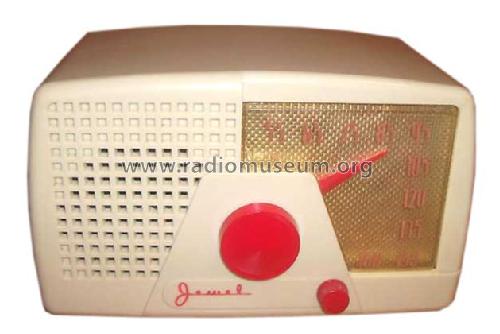

Jewel Radio Corp.;: 956 [Radio] ID = 2386551 1400x1048
Select picture or schematic to display from thumbnails on the right and click for download.
For model 956, Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ

Country:  United States of America (USA)
Manufacturer / Brand:  Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 956 - Jewel Radio Corp.; New York,
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 22, covering 1951
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 11, 1951


All listed radios etc. from Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Here you find 103 models, 62 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
